G2 SLIM Setting the Boot Channel (Android, OPS, Etc)

By default, the G2 SLIM will boot to the Android screen.  If you would like the panel could be set to boot directly to the OPS; follow these instructions to set the panel to open the OPS:  Note, these instructions will also work for any other inputs on the panel.

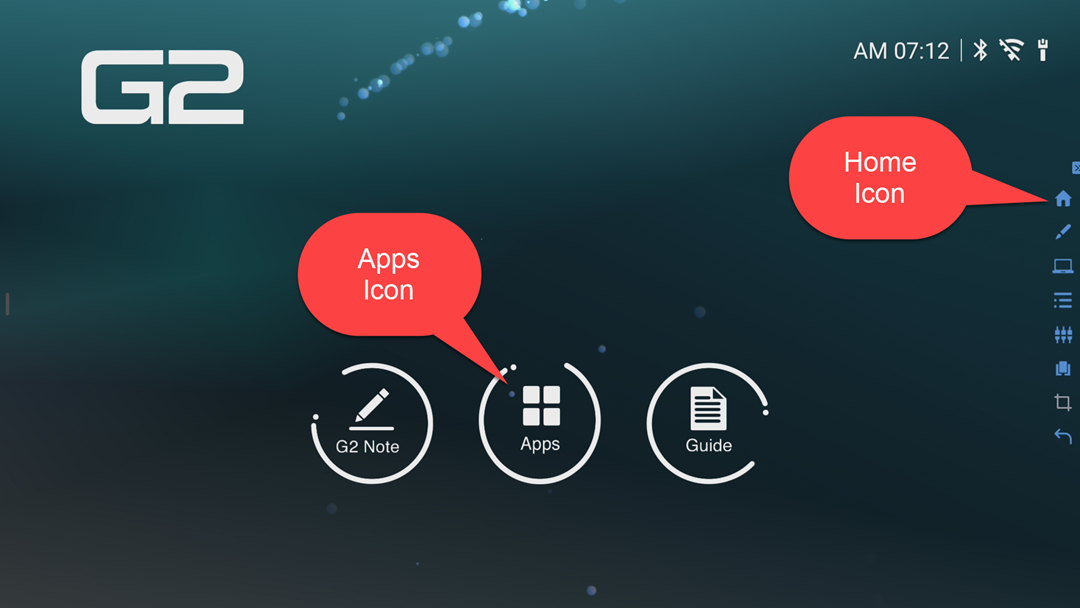

1.    Press the Home icon on the panel.

2.    Press the Apps icon.

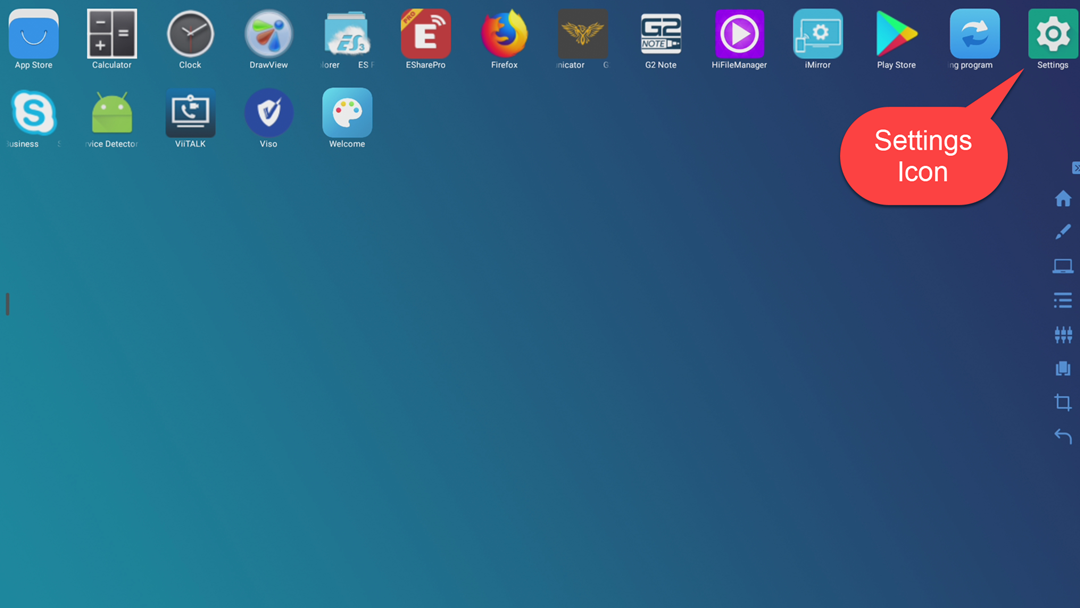

3.    Press the Settings icon.

4.    Press System.

5.    Press Device Settings.

6.    Press Starting Channel

 7.    Select OPS

Note: If using an external computer, select the appropriate input.
